3182058 IC, AMP ISOLATION, DIP30, 210
Κατασκευαστής: ANALOG DEVICES
Part Number:AD210JN

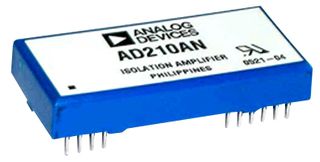

Product Image
IC, AMP ISOLATION, DIP30, 210; No. of Amplifiers:1 Amplifier; Input Offset Voltage:5mV; Isolation Voltage:1.5kV; Supply Voltage Range:13.5V to 16.5V; Amplifier Case Style:DIP; No. of Pins:30Pins; Bandwidth:20kHz; Gain Non-Linearity Max:0.025%; Operating Temperature Min:0?C; Operating Temperature Max:70?C; Product Range:AD210 Series; MSL:-; SVHC:No SVHC (07-Jul-2017); Amplifer Supply Voltage:13.5V to 16.5V; Amplifier Type:Isolation; Base Number:210; Gain Bandwidth:20kHz; IC Generic Number:210; IC Temperature Range:Commercial; Input Offset Voltage Max:45mV; Logic Function Number:210; No. of Amplifiers:1Amplifiers; Operating Temperature Range:0?C to +70?C; Operational Amplifier Features:3 Port Isolation; Slew Rate:1V/?s; Supply Current:50mA; Supply Voltage + Nom:5V; Supply Voltage Max:16.5V; Supply Voltage Min:13.5V; Supply Voltage Type:Single; Termination Type:Through Hole



RoHS: Όχι

Δεν μπορώ να προσθέσω στο καλάθι διότι δεν υπάρχει απόθεμα
Στείλτε email σε ένα φίλο
Βάλτε το στα υπ΄όψιν


Volume Pricing
Quantity Price
1-4 € 116.17
5-9 € 115.37
10+ € 109.39
Minimum Order 1
Maximum Order
Order Multiple 1
Unit Price € 116.17
Pack Size 1

Datasheet
Datasheet Request Form
