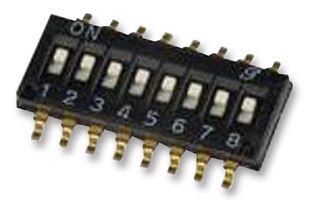

1608127 SWITCH, DIP, SMD, SPST, 8 WAY
Κατασκευαστής: GRAYHILL
Part Number:97C08ST

Product Image
SWITCH, DIP, SMD, SPST, 8 WAY; No. of Circuits:8Circuits; Switch Actuator Style:Slide; Switch Mounting:SMD; Contact Configuration:SPST; Contact Voltage DC Max:24VDC; Contact Current DC Max:25mA; Product Range:94H Series; Switch Type:DIP Sealed; SVHC:No SVHC (27-Jun-2018); Actuation Type:Flat; Actuator Type:Flush Slide; External Depth:7.16mm; External Length / Height:10.16mm; External Width:10.92mm; Lead Spacing:1.27mm; No. of Pins:3Pins; No. of Positions:8Ways; Operating Temperature Max:85?C; Operating Temperature Min:-40?C; Pitch Spacing:1.28mm



RoHS: Όχι



Στείλτε email σε ένα φίλο
Βάλτε το στα υπ΄όψιν


Volume Pricing
Quantity Price
1-4 € 10.32
5-9 € 7.1
10-19 € 6.89
20-49 € 6.31
50+ € 5.53
Minimum Order 1
Maximum Order
Order Multiple 1
Unit Price € 10.32
Pack Size 1

Datasheet
Datasheet Request Form
