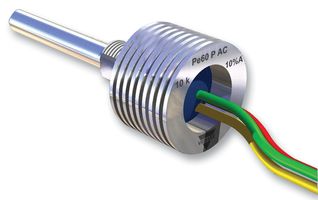

1560941 POTENTIOMETER, 10R, 6W
Κατασκευαστής: VISHAY
Part Number:PE60L0FLW100MA

Product Image
POTENTIOMETER, 10R, 6W; Track Resistance:10ohm; No. of Turns:1Turns; Track Taper:Linear; Power Rating:6W; Resistance Tolerance:? 20%; Product Range:PE60 Series; Potentiometer Mounting:Bushing; Shaft Diameter:6mm; No. of Gangs:1; Adjustment Type:Screwdriver Slot; Shaft Length:25mm; Contact Resistance Variation +:3%; Contact Resistance Variation -:3%; Electrical Angular Rotation Tolerance +:10?; Electrical Angular Rotation Tolerance -:10?; End Resistance:0.5ohm; IP / NEMA Rating:IP67; Insulation Resistance:10Mohm; Mechanical Angular Rotation Tolerance +:5?; Mechanical Angular Rotation Tolerance -:5?; Operating Temperature Max:125?C; Operating Temperature Min:-25?C; Operating Temperature Range:-25?C to +125?C; Resistor Element Material:Cermet; Rotation Electrical Angle:270?; Rotation Mechanical Angle:300?; Temperature Coefficient:? 250ppm/?C; Termination Type:Wire Leaded; Voltage Rating:350V



RoHS: Όχι

Δεν μπορώ να προσθέσω στο καλάθι διότι δεν υπάρχει απόθεμα
Στείλτε email σε ένα φίλο
Βάλτε το στα υπ΄όψιν


Volume Pricing
Quantity Price
1-1 € 101.03
2-2 € 98.01
3-4 € 95.2
5-9 € 92.28
10-19 € 87.42
20-19 € 77.79
20+ € 73.08
Minimum Order 1
Maximum Order
Order Multiple 1
Unit Price € 101.03
Pack Size 1

Datasheet
Datasheet Request Form
