Είστε στο Προϊόντα > Components > Resistors > Variable Rotary


1174093 POTENTIOMETER, 470K
Κατασκευαστής: CITEC - TE CONNECTIVITY
Part Number:5450625113

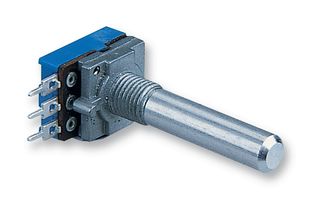

Product Image
POTENTIOMETER, 470K; Track Resistance:470kohm; No. of Turns:1Turns; Track Taper:Linear; Power Rating:200mW; Resistance Tolerance:? 20%; Product Range:54 Series; Potentiometer Mounting:Through Hole; Shaft Diameter:6mm; No. of Gangs:1; Adjustment Type:Screwdriver Slot; Shaft Length:30mm; External Depth:82mm; External Length / Height:15.8mm; External Width:12.5mm; Full Power Rating Temperature:40?C; Height Above Board:12.5mm; Operating Temperature Max:70?C; Operating Temperature Min:-25?C; Operating Temperature Range:-25?C to +70?C; Resistance:470kohm; Resistor Element Material:Metal Foil; Rotation Mechanical Angle:300?; Temperature Coeff. +:500ppm/?C; Temperature Coeff. -:500ppm/?C; Temperature Coefficient:? 500ppm/?C; Termination Type:Solder; Thread Size:8 M7; Tolerance +:20%; Tolerance -:20%; Voltage Rating:500V; Voltage Rating V DC:500V; Voltage Rating VAC:350V



RoHS: Ναι



Στείλτε email σε ένα φίλο
Βάλτε το στα υπ΄όψιν


Volume Pricing
Quantity Price
1-4 € 6.87
5+ € 5.5
Minimum Order 1
Maximum Order
Order Multiple 1
Unit Price € 6.87
Pack Size 1

Datasheet
Datasheet Request Form
